RG6 Details

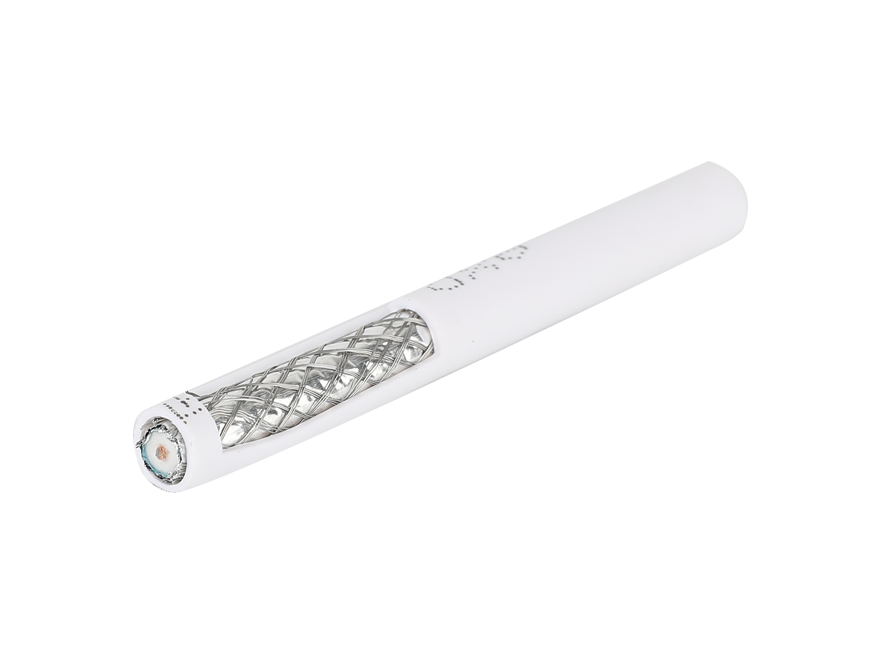

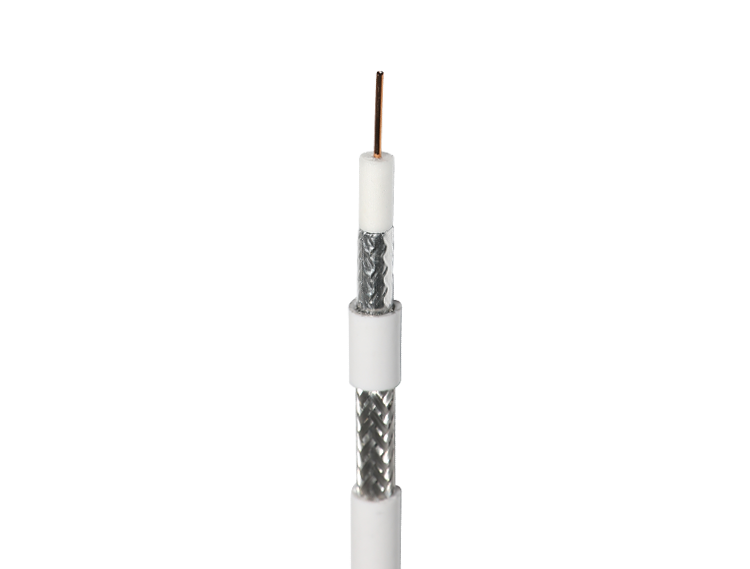

RG6 Coaxial Cable :
	Options:		Standard Specification
Inner conductor	Material	CCS/COPPER/CCA	1.02mmCopper+4.57mm FPE+ Bonded Al Foil+1640.16mm 67% AL-mg+6.8mmPVC
	Diameter	0.8mm/0.9mm/1.02mm
Dielectric insulator	Material	Foam PE/Solid PE
	Diameter	4.57mm-4.9mm
Shield	1st shield	Al foil/copper foil
	2nd shield	32/48/64/80/96/112/128/144/168 Al-Mg /CCAM/Copper/TC
		0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available
	Tri- shield	Al foil/copper foil
	Qual-shield	Al-Mg /CCAM/Copper/TC
Jacket	Material	PVC or PE /PVC Degree: 65,68,70,75 /white or black
		Flame retardant, UV, or UL available
	Diameter	6.6mm-6.9mm
Packing	15m,20m etc short meter with 2 F , Angle male /female TV connectors .
	100m coil, 6 rolls per carton .
	305m ,500m with wooden drum/plastic spool,or inner color box, pulling box, outer cartons .
Characteristics	Impedance: 75+/-3 Ohm Velocity of Propagation: 85%
	Return Loss: >=20dB Capacitance :54+3pF/mReference Attenuation [@ 68F. (20.)]
	5MHz 2.0dB/100 m
	50MHz 4.5dB/100 m
	200MHz 8.0dB/100 m
	450MHz 13dB/100 m
	550MHz 14.5dB/100 m
	750MHz 17.5dB/100 m
	800MHz 18dB/100 m
	860MHz 19dB/100 m
	1000MHz 20dB/100 m
