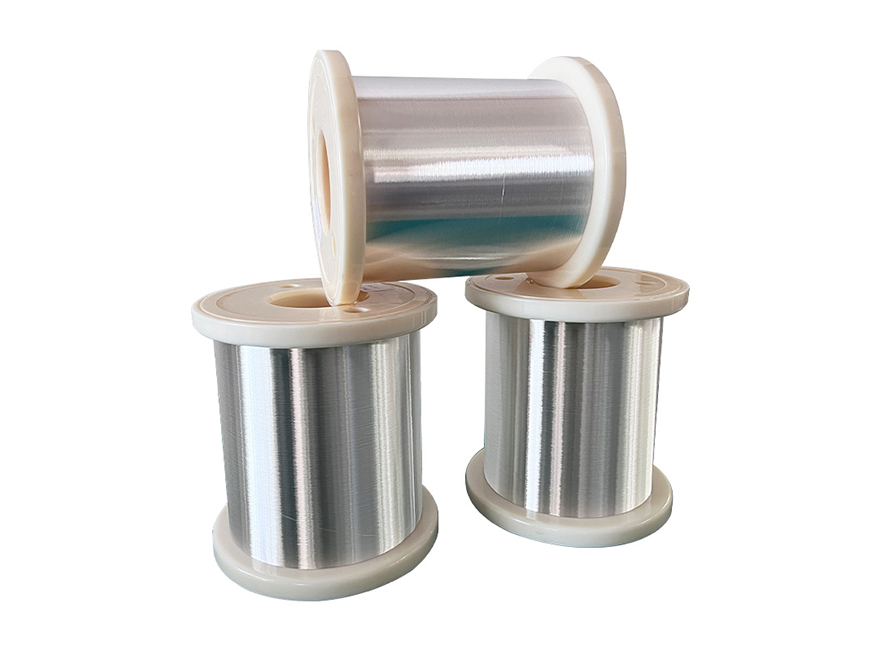

Silver Plated Copper Wire - Single
| Project | Diameter(mm) | |||
| 0.05≤d≤0.1 | 0.1<d≤0.25 | 0.25<d≤0.5 | 0.5<d≤2.0 | |
| tolerance(mm) | ±0.002 | ±0.003 | ±0.004 | ±d% |
| electrical resistivity (Ωmm²/m) |
≤0.017241（soft） | |||
| ≤0.01796（hard） | ||||
| Elongation（％） | ≥13% | ≥18% | ≥20% | ≥25% |
| Tensile Strength(Mpa) | soft:≥196 hard:≥350 | |||
| plating(um) | 0.2—10um | |||
| appearance | No scratches, oil, copper exposure, oxidation and other abnormalities | |||
| Package | 5 inch, 8 inch, 9 inch, 300 type, 400 type rubber disc, 400 type steel disc, 500 type steel disc, etc | |||
| remark | Can be changed according to customer requirements | |||

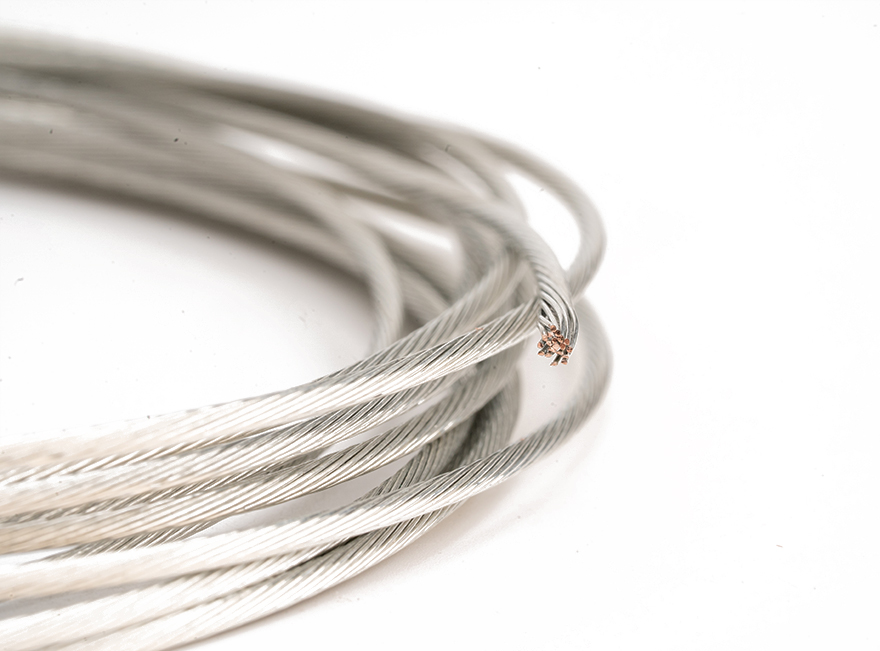

Silver Plated Copper Wire - Stranded
| Project | Diameter(mm) | ||
| 0.05≤d≤0.09 | 0.09<d≤0.25 | 0.25<d≤0.5 | |
| tolerance(mm) | ±0.003 | ±0.004 | ±0.005 |
| electrical resistivity (Ωmm²/m) |
≤0.01851 | ≤0.01802 | ≤0.0177 |
| Elongation（％） | ≥6 | ≥12 | ≥15 |
| number wire | 7-100 | ||
| lay direction | S OR Z | ||
| Resistance(mm) | 2.0—100mm | ||
| Tensile Strength(Mpa) | ≥196 | ||
| plating(um) | 0.3—2.0um | ||
| appearance | No scratches, oil, copper exposure, oxidation and other abnormalities | ||
| Package | DIN200、DIN300、DIN400 rubber disc, 400 type steel disc, DIN500 steel disc, etc | ||
| remark | Can be changed according to customer requirements | ||
