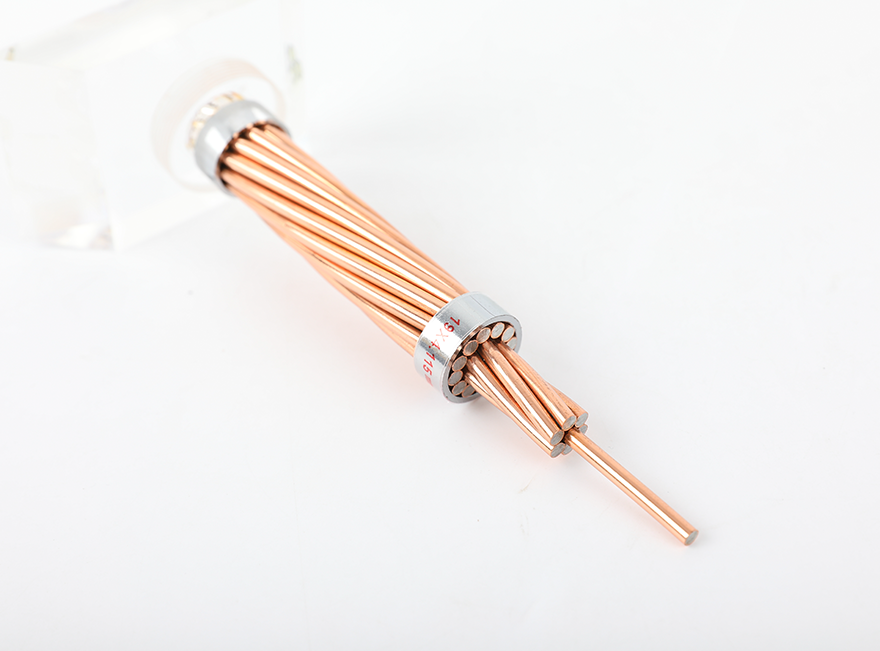

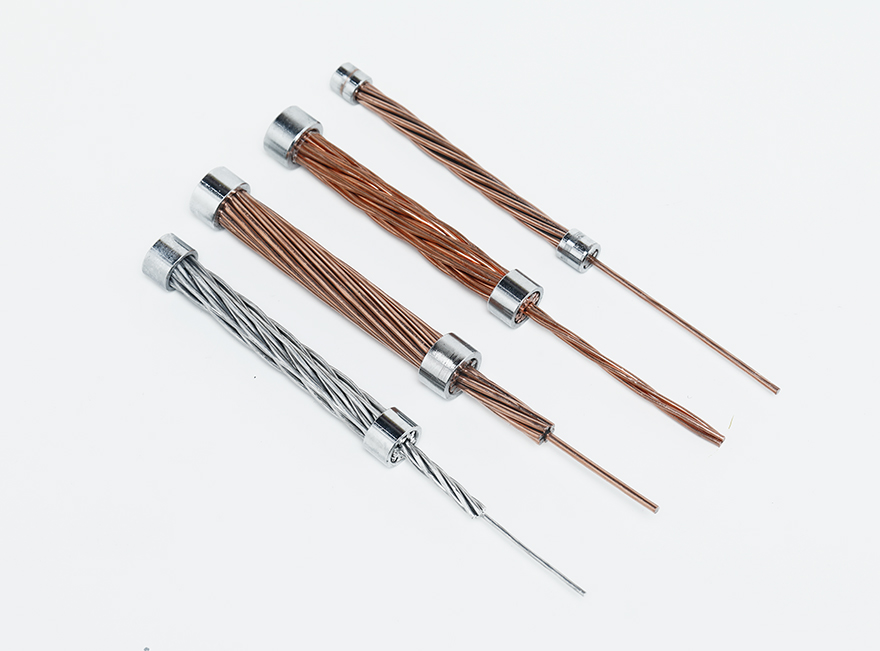

CCS Stranded & Bunched Wire

Application

1. Earth rod for power industry
2. Trolly wire for power transmission
3. Overhead-contact systems for railway
4. Connectors for electronic components
5. Strengthened conductivity wire core for special cable

Advantage

1. Combination of good conductivity, high tensile strength and welding property of copper.
2. Highdensity, good extensibility thus saving copper resource and cost.

E-mail :[email protected]

PREV：No previous article
NEXT：No next article

CCS Stranded & Bunched Wire Details

CCS Stranded & Bunched Wires
Section area(mm2)	Diameter of single wire(mm)	Number of strand	Diameter of the entire Strand(mm)	Weight for reference(kg/km)	Electrical conductivity of a single wire(%)
16	1.70	7	5.10	130	14-40
25	2.14	7	6.36	200
35	2.52	7	7.50	280
50	3.00	7	9.0	400
50	1.80	19	9.0	400
70	3.50	7	10.0	500
70	2.14	19	10.0	500
95	2.52	19	12.6	766
120	2.84	19	14	980
150	3.15	19	15.8	1230
150	2.28	37	15.8	1230
185	3.52	19	17.5	1520
185	2.52	37	17.5	1520
240	4.00	19	20.00	1970
240	2.88	37	20.00	1970
300	3.20	37	22.4	2430

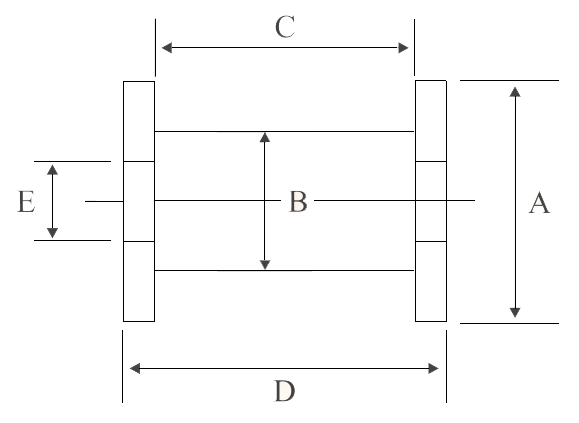

CCS Stranded Wires Packaging Details:
DIN 130mm	DIN 185mm	DIN 250mm	DIN400mm	DIN800mm
A:130mm	A:185mm	A:250mm	A:400mm	A:800mm
B:65mm	B:130mm	B:160mm	B:160mm	B:370mm
C:100mm	C:160mm	C:160mm	C:260mm	C:490mm
D:120mm	D:180mm	D:200mm	D:290mm	D:520mm
E:21mm	E:31mm	E:31mm	E:56mm	E:126mm
