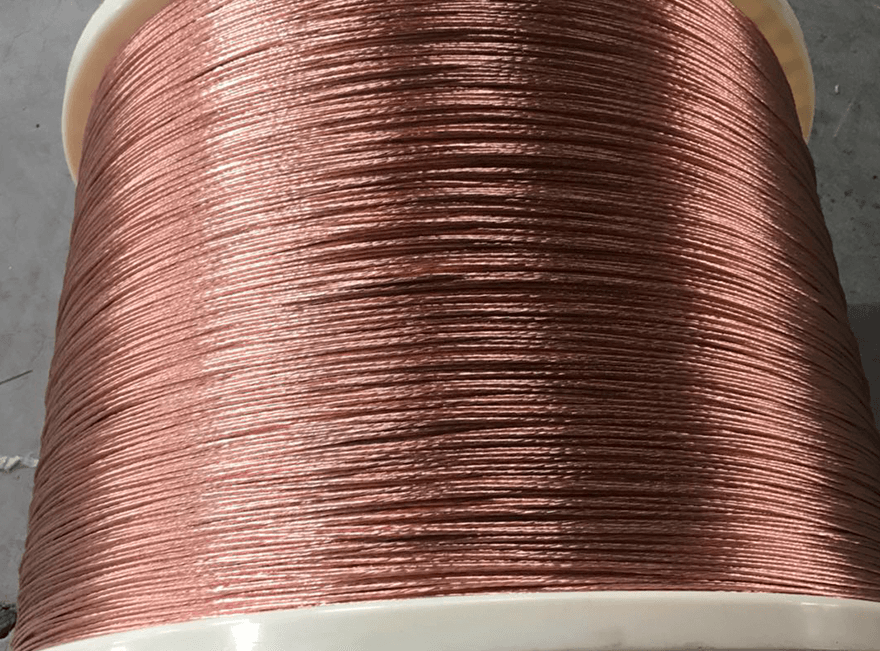

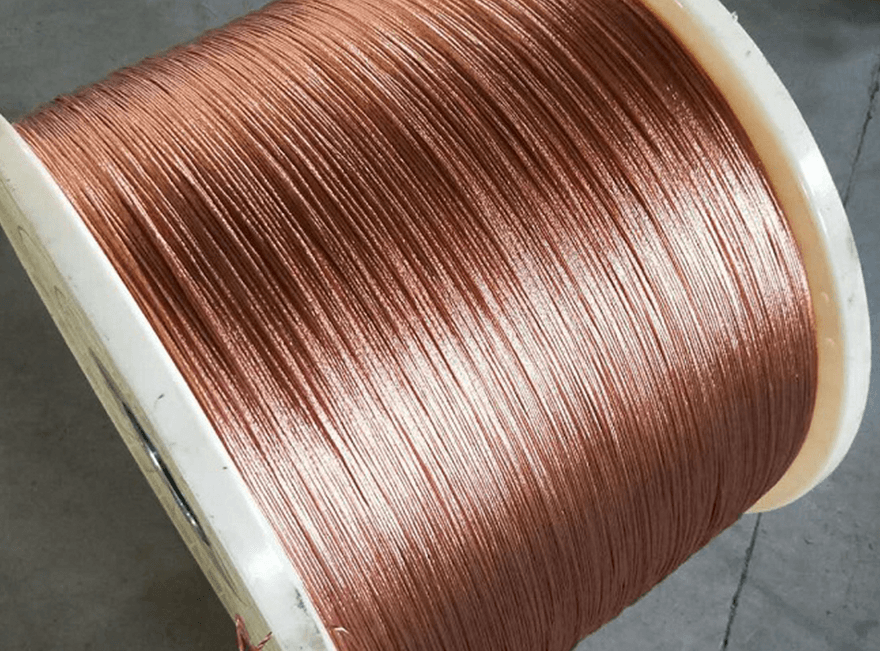

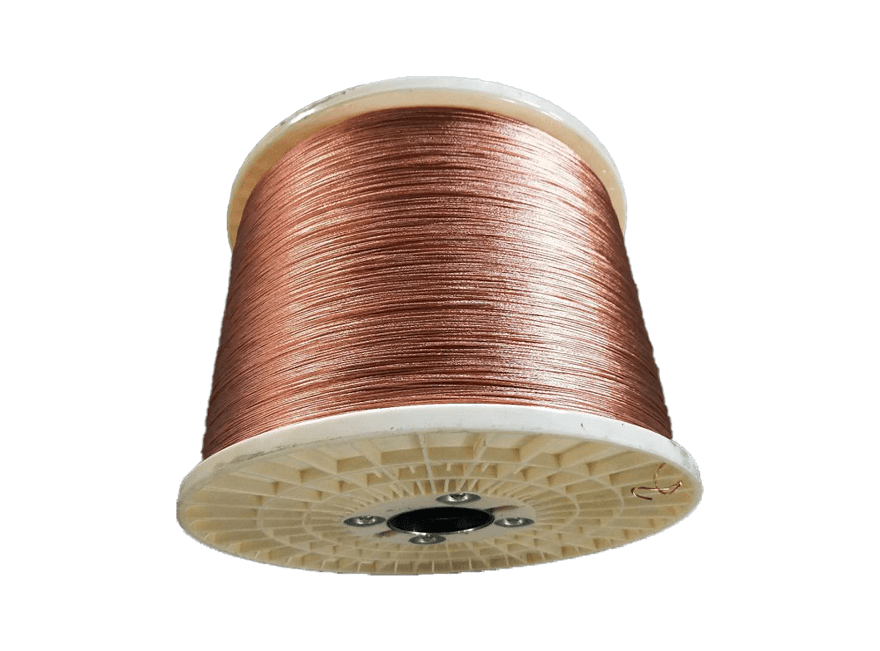

CCA Stranded & Bunched Wire

Application

1.Thw cable
2.Extension cable
3.Rf cable
4.Building cable
5.Boost/battery cable
6.Welding cable
7.Speaker cable

Advantage

1.Competitive price-low cost and price than copper.
2.Signal transmission-higher tansfer speed than aluminum and close to copper.
3.Lighter weight-low density for easy install and save labor cost.

E-mail :[email protected]

PREV：No previous article
NEXT：No next article

CCA Stranded & Bunched Wire Details

CCA Stranded & Bunched Wires
Section area (mm2)	Structure (number/mm)	Resistance (Ω/km)max	Tensile Strength (Mpa)	Elongation
0.60/0.50	19/0.20	42.20	100-150	1-25
0.75	19/0.23	34.18
1.00	19/0.26	26.75
1.5	19/0.32	17.65
2.00	19/0.36	13.95
2.50	19/0.41	10.32
3.00	19/0.47	8.32
4.00	19/0.53	6.48
5.00	19/0.59	5.23
8.00	19/0.73	3.42
10.00	19/0.82	2.7
15.00	19/1.01	1.75
20-400	All technology data and structure are complied customer's request

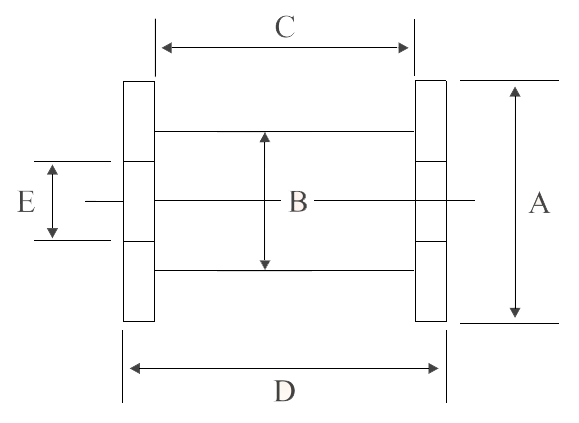

CCA Stranded Wires Packaging Details:
DIN 500mm	DIN 630mm	DIN 800mm
A:500mm	A:630mm	A:800mm
B:200mm	B:280mm	B:370mm
C:330mm	C:400mm	C:490mm
D:360mm	D:430mm	D:520mm
E:56mm	E:56mm	E:126mm
