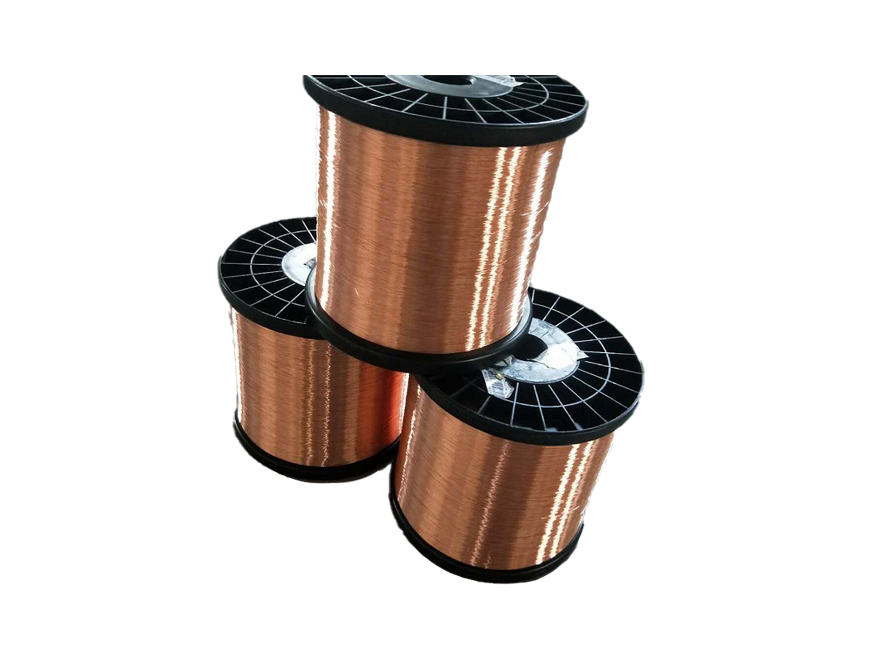

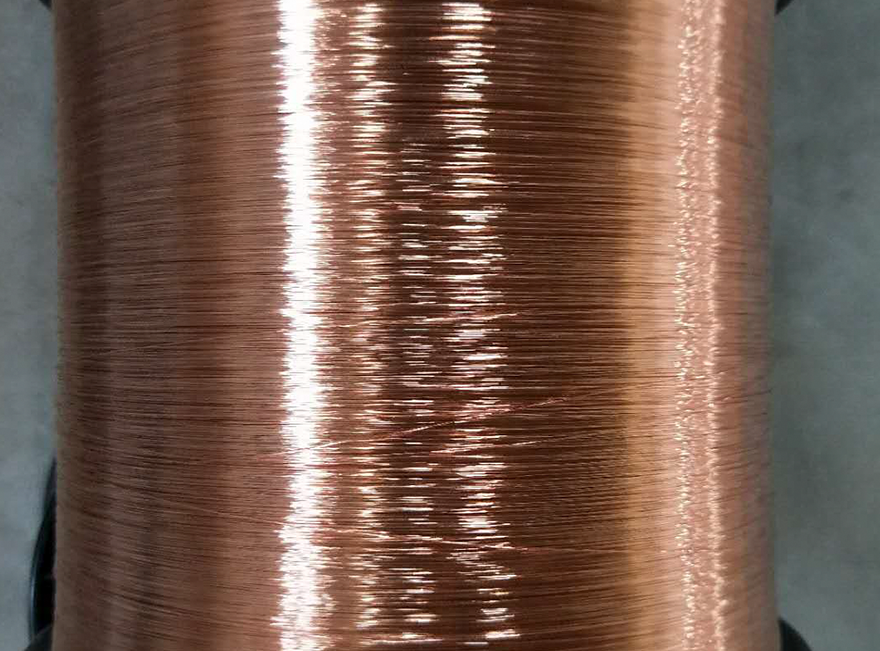

CCA-Copper Clad Aluminum Wire

Application

1.Lan cable

2.Power cable

3.Control cable
4.Conductor for coaxial cables

5.Construction wiring

6.Bus-bar
7.Fuse

8.Rf shielded cable

9.Extension cord

Advantage

1. Better price-less expensive than copper, reducing costs of material for cable production.
2. Higher conductivity-electrical conductivity much higher than pure aluminum.
3. Lighter weight-easy to transport and install thus saves labor cost.

E-mail :[email protected]

PREV：No previous article
NEXT：No next article

CCA-Copper Clad Aluminum Wire Details

CCA Wires(AWG)							Note:
Technical Characteristics	Clad type				Plated type		All products can be customized upon customer's specific requirements
Technical Characteristics	10H	10A	15H	15A	Hard	Soft
Size range	0.12mm-8.00mm	0.12mm-8.00mm	0.12mm-8.00mm	0.12mm-8.00mm	0.12mm-8.00mm	0.12mm-8.00mm
Copper content (by weight)	25%-31%	25%-31%	32%-40%	32%-40%	10%
Resistivity (max at 20℃)	0.02743Ω.mm²/m	0.02743Ω.mm²/m	0.02676Ω.mm²/m	0.02676Ω.mm²/m	0.02743Ω.mm²/m
Density	3.32g/cm³	3.32g/cm³	3.63g/cm³	3.63g/cm³	2.85g/cm³
Conductivity (min at 20℃)	62%	62%	64%	64%	60%
Elongation	1%-3%	8%-25%	1%-3%	8%-25%	1%-3%	8%-25%
Tensile strength	≥250Mpa	≥110Mpa	≥250Mpa	≥110Mpa	≥250Mpa	≥110Mpa

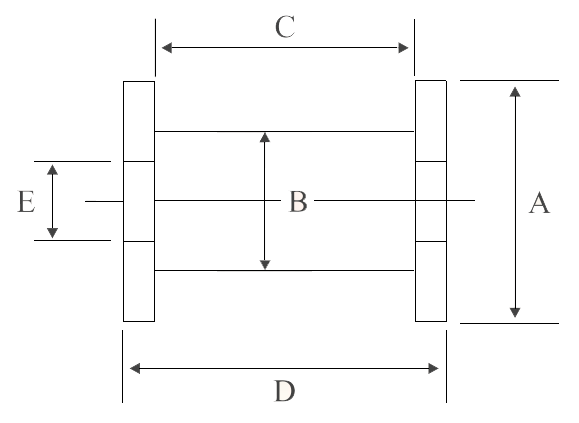

CCA Wires Packaging Details:
DIN 130mm	DIN 185mm	DIN 250mm	DIN400mm	DIN800mm
A:130mm	A:185mm	A:250mm	A:400mm	A:800mm
B:65mm	B:130mm	B:160mm	B:160mm	B:370mm
C:100mm	C:160mm	C:160mm	C:260mm	C:490mm
D:120mm	D:180mm	D:200mm	D:290mm	D:520mm
E:21mm	E:31mm	E:31mm	E:56mm	E:126mm
