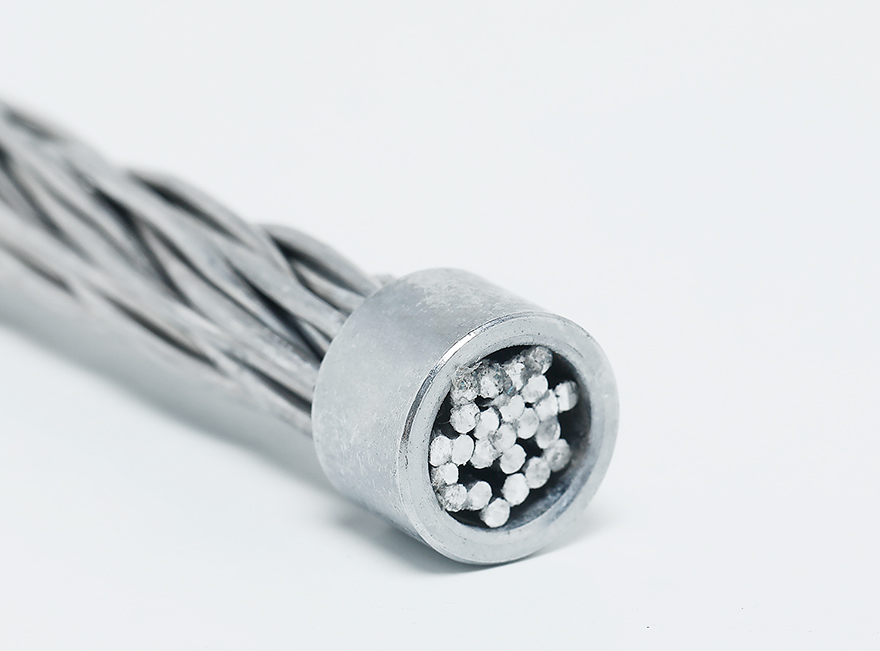

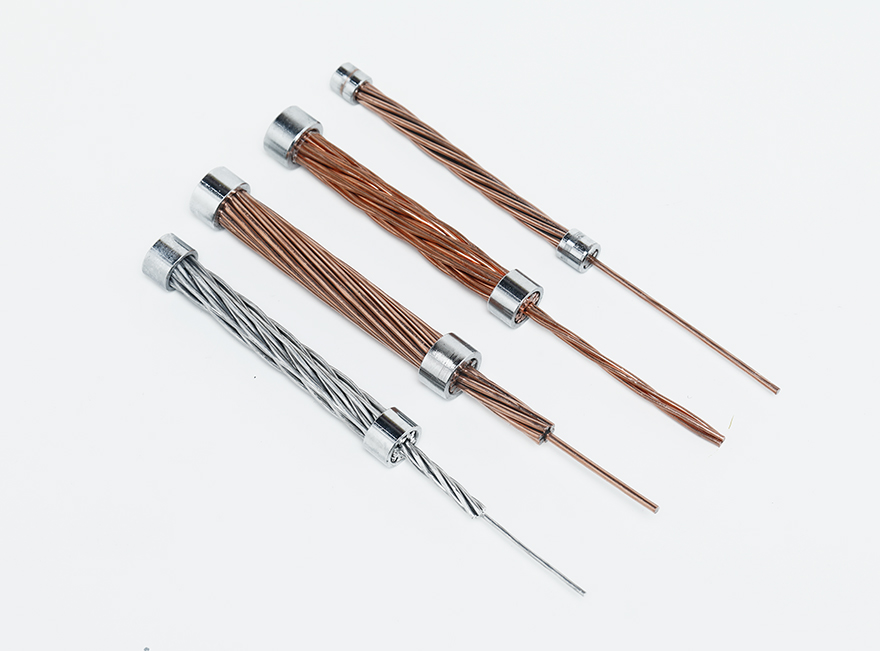

Aluminium Alloy/Aluminium Stranded Wire

Application

1.THW cable
2.Building cable
3.ACSR
4.AAAC
5.Low & middle voltage cable
6.Extension cord cable
7.Other kinds of power cable

Advantage

1.Light weight and low density for competitive price and cost.
2.Good conductivity and transmission instead of copper.
3.Easy for cable installation.
4.Multi-application for many kinds of cables.

E-mail :[email protected]

PREV：No previous article
NEXT：No next article

Aluminium Alloy/Aluminium Stranded Wire Details

Aluminum Bunched Wire (1350、5154、6201、8176)
Code	Nom. area	Stranding	cla Szie	O.D	mass	Strength	Resistance(20℃)
	mm²	No./mm	mm²	mm	kg/km	kgf	Ω/km
Box	15	7/1.85	18.82	5.55	51	537	1.7495
Acacia	20	7/2.08	23.79	6.24	65	680	1.384
Almond	25	7/2.34	30.1	7.02	82	861	1.0934
Cedar	30	7/2.54	35.47	7.62	97	1014	0.9281
-	35	7/2.77	42.18	8.31	115	1205	0.7804
Fir	40	7/2.95	47.87	8.85	131	1367	0.688
Hazel	50	7/3.30	59.87	9.9	164	1711	0.5498
Pine	60	7/3.61	71.65	10.83	196	2048	0.4594
-	70	7/3.91	84.05	11.73	130	2402	0.3917
Willow	75	7/4.04	89.73	12.12	245	2565	0.3669
-	80	7/4.19	96.52	12.57	264	2758	0.3441
-	90	7/4.44	108	13.32	298	3112	0.3023
Oak	100	7/4.65	118.9	13.95	325	3398	0.2769
-	100	19/2.82	118.7	14.1	326	3393	0.2787
mulberry	125	19/3.18	150.9	15.9	415	4312	0.2192
Ash	150	19/3.48	180.7	17.4	497	5164	0.1831
Elm	175	19/3.76	211	18.8	580	6030	0.1568
Poplar	200	37/2.87	239.4	20.09	659	8841	0.1385
-	225	37/3.05	270.3	21.35	744	7724	0.1227
Sycamorc	250	37/3.22	303.2	22.54	835	8664	0.1093
Upas	300	37/3.53	362.1	24.71	997	10350	0.09156
Walnut	350	37/3.81	421.8	26.67	1162	12053	0.0786
Yew	400	37/4.06	479	28.42	1319	13685	0.06921
Totara	425	37/4.14	498.1	28.98	1372	14233	0.06656
Rubus	500	61/3.50	586.9	31.5	1620	16771	0.05662
Araucaria	700	61/4.14	821.1	37.25	2266	23450	0.01047
